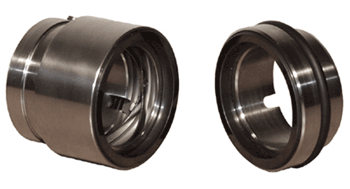

Typ DIN2

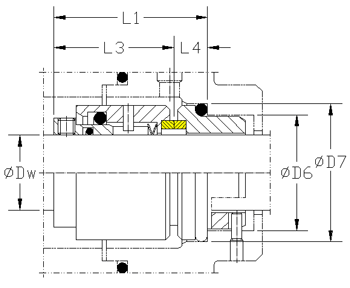

Dw L1 L3 L4 D6 D7
18 37,5 26,0 11,5 27,0 33,0
20 37,5 26,0 11,5 29,0 35,0
22 37,5 26,0 11,5 31,0 37,0
24 40,0 28,5 11,5 33,0 39,0
25 40,0 28,5 11,5 34,0 40,0
28 42,5 31,0 11,5 37,0 43,0
30 42,5 31,0 11,5 39,0 45,0
32 42,5 31,0 11,5 42,0 48,0
33 42,5 31,0 11,5 42,0 48,0
35 42,5 31,0 11,5 44,0 50,0
38 45,0 31,0 14,0 49,0 56,0
40 45,0 31,0 14,0 51,0 58,0
43 45,0 31,0 14,0 54,0 61,0
45 45,0 31,0 14,0 56,0 63,0
48 45,0 31,0 14,0 59,0 66,0
50 47,5 32,5 15,0 62,0 70,0
53 47,5 32,5 15,0 65,0 73,0
55 47,5 32,5 15,0 67,0 75,0
58 52,5 37,5 15,0 70,0 78,0
60 52,5 37,5 15,0 72,0 80,0
63 52,5 37,5 15,0 75,0 83,0
65 52,5 37,5 15,0 77,0 85,0
68 52,5 34,5 18,0 81,0 90,0
70 60,0 42,0 18,0 83,0 92,0
75 60,0 42,0 18,0 88,0 97,0
80 60,0 42,0 18,0 95,0 105,0
85 60,0 42,0 18,0 100,0 110,0
90 65,0 47,0 18,0 105,0 115,0
95 65,0 48,0 17,0 110,0 120,0
100 65,0 48,0 17,0 115,0 125,0

Einsatzgrenzen:
Dw:
P1:
T:

Vg:
 18 bis 100 mm
0,8 bis 25 bar
-20 bis 180°C
T abhängig vom Elastomer
10 m/s
Gleitflächen:
Q12:
B:
 SIC geschr.
Kohle K
Metallteile: CrNiMo-Stahl
Nebendichtungen: Alle Elastomere
Elastomere-ummant.
